40Ton Semi Trailer Dimension:
> Tare Weight: 5800kg
> Trailer Payload: 40000kg
> Total Weight: 45800kg
> Overall Length: 12400mm
> Overall Width: 2480mm
> Overall Height: 1410mm
> Wheel track: 1840mm
> Wheelbase: 7545mm+1310mm+1310mm
Skeletal 40Ton Semi Trailer Specification:
1. Main Frame: Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by
automatic Submerged-Arc processes; 500mm Height, Top Flange 14mm, width 140mm; Middle Flange 6mm;
Bottom Flange 16mm, width 140mm.
2. Axle: Three units WONDEE Brand 13T Axle
3. Suspension: WONDEE brand 3-axle mechanical suspension, American design
4. Leaf Spring: Six sets of reliable WONDEE brand leaf spring, 90*16mm or 100*12mm
5. King Pin: one unit of 3.5" bolt-in kingpin, standard
6. Landing Gear: Two-speed, manual operation, heavy duty WONDEE Brand linked landing gear
7. Wheel Rim: 12 units of 8.25*22.5 wheel rim
8. Tire: 12 units tire
9. Twist Lock: Twelve nos. four nos are fasten mode, eight nos are up-down mode, of ISO twist lock for 2x20ft
or1x40ft container, central locks can be laid down.
10.Pneumatic Braking System: Two units of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber;
two units T30 brake chamber, two units of reliable local brand 40L air tank; two units of reliable local brand
standard coppery air-connector.
11. Electrical System: One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand
standard rear light, turn light, rear reflector, side light, side reflector etc. One set of WONDEE (brand) 6-core
standard Cable.
12. Painting: Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; colour
advised by client
13. Accessory: One box with a set of standard trailer tool

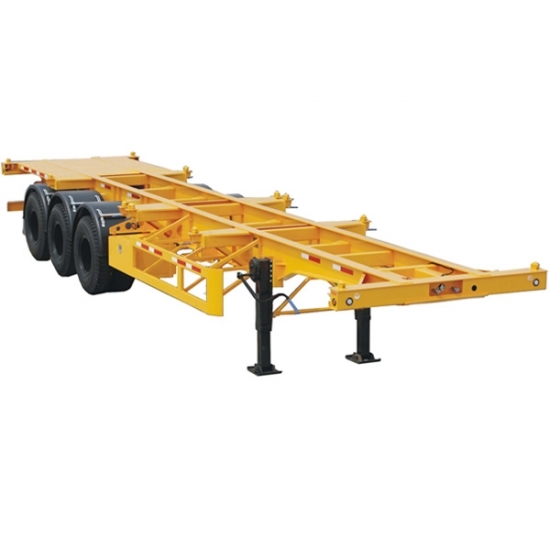

Chassis Skeletal 40Ton Semi Trailer Detail Photos:
